The Deye Battery Low voltage , SE-G5.1 is a high-efficiency residential energy storage solution, specifically designed for regions in Asia, Africa, and Latin America. Utilizing advanced Lithium Iron Phosphate (LiFePO₄) battery technology, it offers enhanced safety, longevity, and performance.

Key Features:

• High Efficiency: With a capacity of 100 Ah, the SE-G5.1 delivers a nominal energy output of 5.12 kWh, ensuring reliable energy storage for various applications.

• Flexible Scalability: The modular design allows for expansion of up to 64 units in parallel, accommodating customized energy storage needs.

• Robust Performance: Supports a continuous discharge current of 50 A, with a peak discharge of 100 A for short durations, catering to high-demand scenarios.

• Eco-Friendly Design: Constructed with non-toxic, pollution-free materials, the SE-G5.1 aligns with sustainable energy practices.

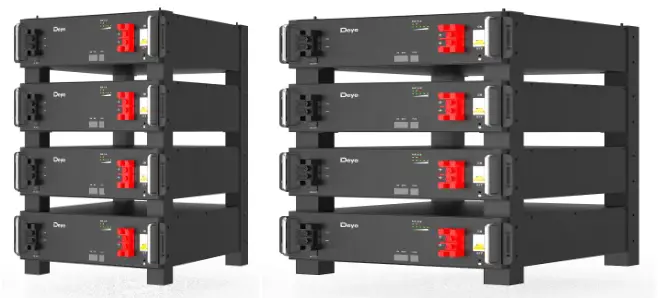

• Multiple Mounting Options: Its 3U height design supports rack-mounted, wall-mounted, or stack-mounted installations, offering flexibility in various settings.

• Advanced Monitoring: Features auto-networking capabilities with support for remote monitoring and firmware upgrades, facilitating easy maintenance and system management.

• Durable and Reliable: Operates effectively in a wide temperature range (-20℃ to 55℃) and boasts a cycle life of over 6000 charges, ensuring long-term reliability.

Specifications:

• Model: Deye SE-G5.1

• Battery Chemistry: LiFePO₄

• Nominal Capacity: 100 Ah

• Nominal Voltage: 51.2 V

• Operating Voltage: 44.8 V to 57.6 V

• Nominal Energy: 5.12 kWh

• Scalability: Up to 64 units in parallel (totaling 327 kWh)

• Charge Current: Max 50 A (Continuous), 100 A (Peak for 10 seconds)

• Discharge Current: Max 50 A (Continuous), 100 A (Peak for 10 seconds)

• Depth of Discharge (DoD): Recommended 80%

• Dimensions (W x D x H): 440 mm x 540 mm x 133 mm

• Weight: Approximately 44 kg

• Communication Ports: CAN2.0, RS485

• IP Rating: IP20

• Operating Temperature: Charge: 0 to 55℃; Discharge: -20 to 55℃

• Storage Temperature: 0 to 35℃

• Relative Humidity: Up to 95%

• Cycle Life: ≥6000 cycles

• Warranty Period: 5 years

Installation Options:

• Floor-mounted (stacked)

• Wall-mounted

• Rack-mounted (compatible with cabinets of depth ≥600mm)

Included Accessories:

• Battery parallel cable for power and communication connections

• Mounting brackets for wall and stack installations

• Fixed ears for rack mounting
